Description

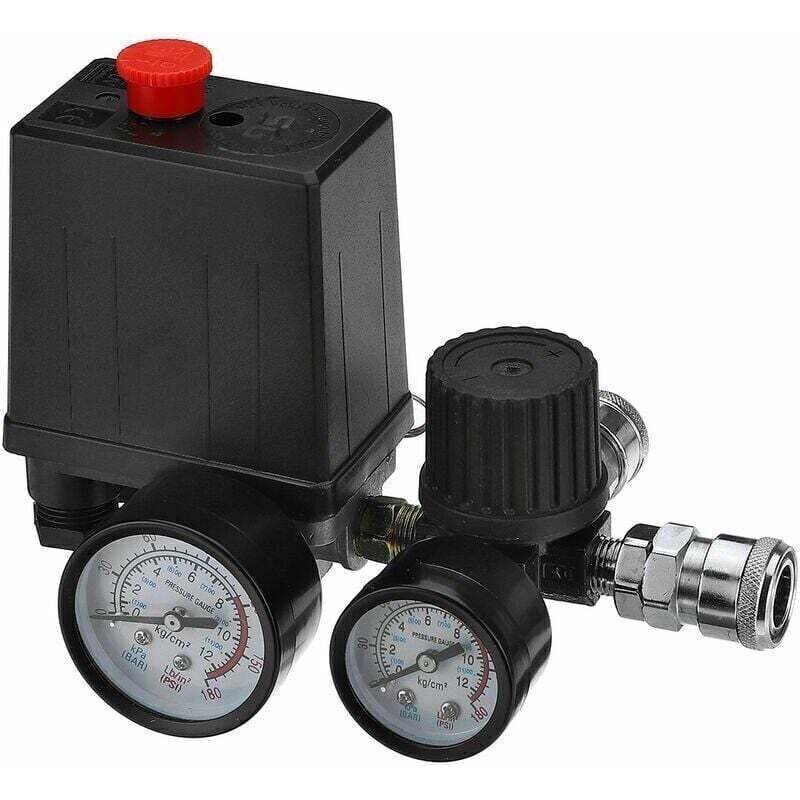

Pressure control valve, pressure regulator for air compressors with quick connection Specifications: Color: as shown Material: plastic, electrolytic aluminum, hierro Voltage: 220 V Operating pressure range: 0-0.8 MPa Caudal maximum: 3000 l/min Manometer: 0-180 psi Pressure regulation range: 95-125 psi Adjustment range of the safety pressure regulator: 30-120 psi Height diameter of the input ports and salt: G1/4 0.4/11 mm Characteristics: 1. Compact size and light weight 2. The piston seat has a V shape, which provides good sealing, resistance to damage and stability. 3. The piston and caudal structure are 30% superior to the conventional diafragma type. 4. The valve core is equipped with a rebosder, and the pressure release speed is rapid and intuitive. 5. High voltage control accuracy and sensitive sensitivity. 6. The structure allows the installation of the original gauge and gas supply valve, for a versatile application. 7. Easy installation. Possibility of inverted installation,
