Description

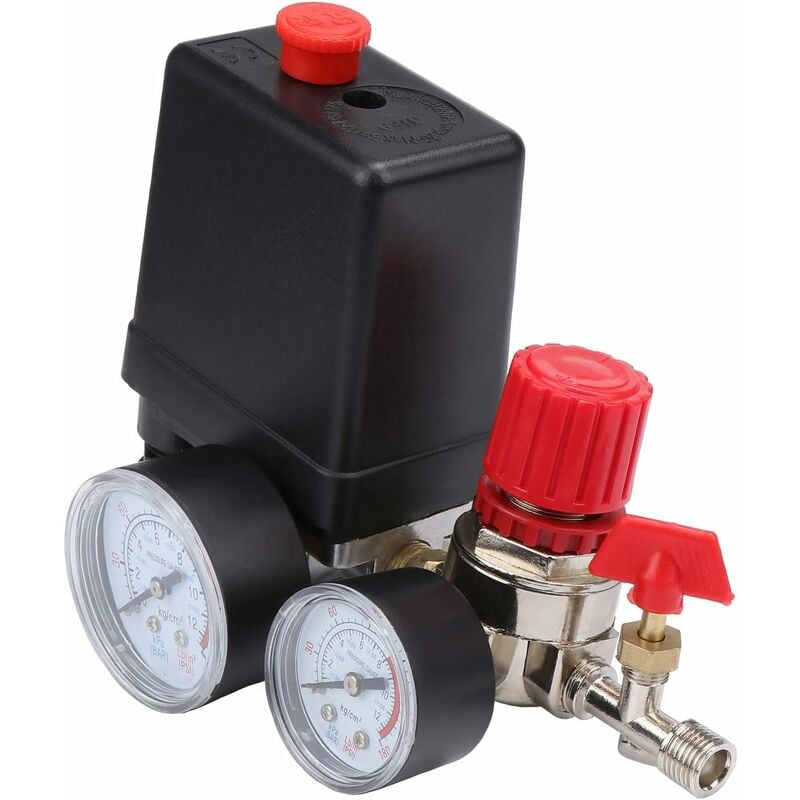

General description The Air Compressor Pressure Switch Valve is designed to regulate the closing and starting pressure of air compressors. It features a piston structure that offers a flow rate 30% higher than traditional diaphragm types, ensuring efficient operation. Technical specifications Structure: Air compressor pressure valve with 1/4″ outlet safety valve and 2 gauges Maximum voltage: 240 V Maximum current: 20 A Switch control range pressure: 90 to 120 psi Applicable pressure range: 0.5-0.8 MPA Maximum flow: 3000 L/min Connector: G1/4 Gauge diameter: G1/8 Materials: Metal + plastic Installation Easy to install and use Usage Helps save electric energy of air compressor Users can adjust according to their situation Other information The piston seal adopts a V-type seal for good sealing, wear resistance, and stability Includes an on/off switch and lever for convenient operation Features an overflow port for rapid pressure reduction Small in size and light in weight
