Description

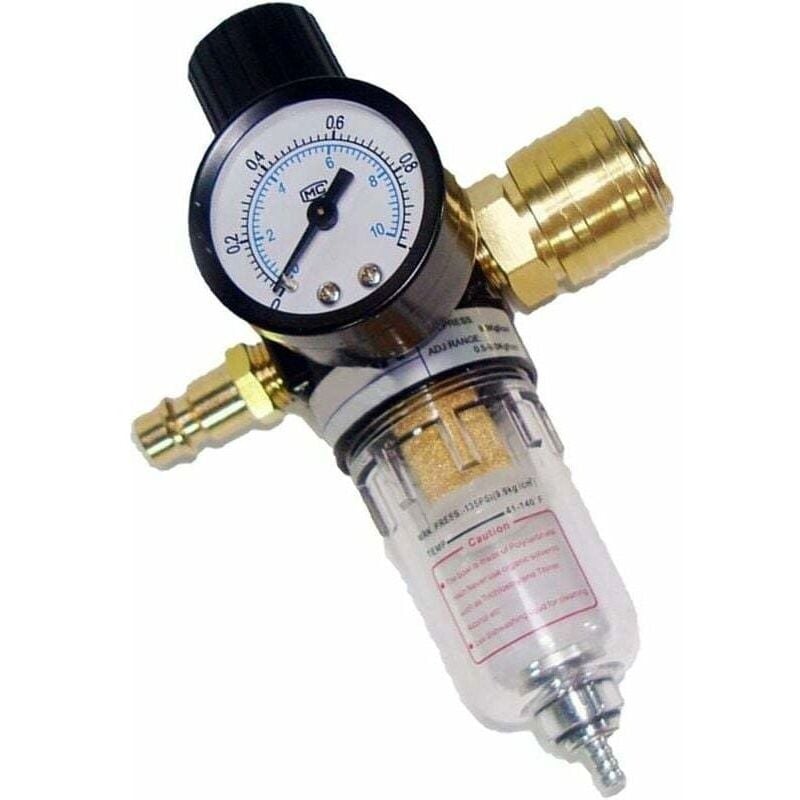

General Description The compressed air filter is an efficient maintenance unit, integrating a filter and a water separator, specially designed for use on compressors. It protects compressed air devices from mechanical impurities and water while maintaining a constant working pressure, ensuring uniform air discharge and optimal operation. Technical Specifications Condition: 100% Brand New Material: Copper, Stainless Steel, Plastic Pressure Adjustment Range: 0.5-8.5 kg/cm² Maximum Adjustable Pressure: 9.5 kg/cm² Working Medium: Air Caliber: 1/4 inch Filter Element Accuracy: 40 μ Pressure Resistance: 15 kg/cm² Water Filter Capacity: 15 cc Operating Temperature Range: 5-60°C Compatibility and Accessories Includes a compressed air filter and quick couplings. Installation Easy to install thanks to its small size and light weight. The oil-water separator allows the distribution of clean, dry air. Use The pressure regulator is adjustable by pulling and turning the knob on top to set the
